OHNS Grade Introduction:
OHNS (Oil Hardening Non-Shrinking) Steel is a premium-grade tool steel designed for applications that demand high hardness, excellent wear resistance, and dimensional stability. It is widely used in the manufacturing of precision tools, dies, punches, gauges, cutters, and other engineering components where accuracy and long service life are essential.
This steel grade offers an excellent balance of strength, toughness, and machinability, making it easy to machine before heat treatment while delivering outstanding performance after hardening. Thanks to its carefully controlled composition of carbon, manganese, chromium, silicon, and vanadium, OHNS steel provides consistent hardness, improved edge retention, and reliable resistance to wear in demanding industrial environments.

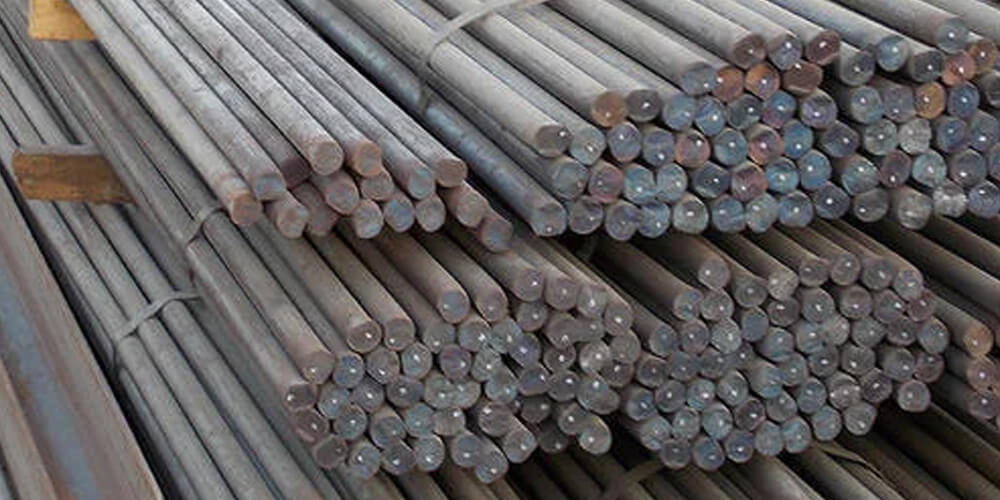

At Titan Steel, we supply premium-quality OHNS Steel Round Bars in a wide range of sizes and specifications to meet the requirements of tool rooms, automotive manufacturers, engineering companies, and industrial fabrication projects. Our products are manufactured to high-quality standards, ensuring dependable performance, precision, and long-lasting durability.
OHNS Steel Overview:
OHNS (Oil Hardening Non-Shrinking) steel is a high-performance tool steel known for its excellent hardness, wear resistance, and dimensional stability after heat treatment. It is widely used for manufacturing precision tools and engineering components that require consistent performance and long service life. This steel grade offers good machinability in the annealed condition and develops outstanding strength and edge retention after hardening. Its reliable mechanical properties make it a preferred choice for tooling, metalworking, and precision engineering industries.
OHNS Grade Application:
OHNS (Oil Hardening Non-Shrinking) steel is a high-performance tool steel known for its excellent hardness, wear resistance, and dimensional stability after heat treatment. It is widely used for manufacturing precision tools and engineering components that require consistent performance and long service life. This steel grade offers good machinability in the annealed condition and develops outstanding strength and edge retention after hardening. Its reliable mechanical properties make it a preferred choice for tooling, metalworking, and precision engineering industries.
Typical applications of OHNS steel include:

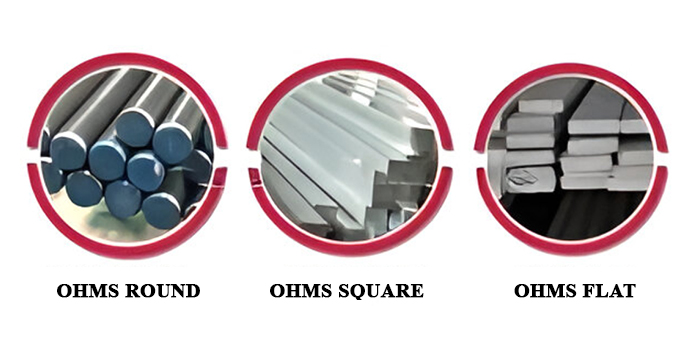

OHNS Steel Round Bar Applications
OHNS Steel Round Bars are widely used in a variety of industrial and engineering applications, including:
- Precision cutting tools
- Punches and dies
- Press tools and stamping dies
- Thread rolling dies
- Gauges and measuring tools
- Shear blades and cutters
- Industrial knives
- Jigs and fixtures
- Machine components
- Automotive tooling
- Moulds for engineering applications
- General tool room equipment
These applications benefit from the steel’s excellent wear resistance, high hardness, and ability to maintain dimensional accuracy even under demanding working conditions.
- Blanking and stamping dies
- Punches
- Rotary shear blades
- Thread cutting tools
- Milling cutters
- Reamers
- Measuring and gauging tools
- Woodworking tools
- Broaches and chasers
Additional Grades Available:
We also offer additional steel grades including EN1A, EN8, EN24, EN31, D2, H13, SCM420, and many more.
OHNS Equivalent Grades:
| Standard | Equivalent Grades |
|---|---|
| DIN | 100MnCrW4 |
| AISI | O1 |
| AFNOR | 90MWCV5 |
| JIS | SKS3 |
| DIN 2510 | O1 |
OHNS Chemical Composition:
| Element | C | Si | Mn | P (Max) | S (Max) | Cr | W |
|---|---|---|---|---|---|---|---|
| Content | 0.85-1.00 | 0.15-0.35 | 1.00-1.20 | 0.03 Max | 0.03 Max | 0.50-0.70 | 0.50-0.70 |
OHNS Mechanical Properties:
| Property | Value |
|---|---|
| Max Stress (N/mm²) | 950 |
| Yield Stress (N/mm²) | 465 |
| Elongation | 10% |
| Impact Strength (J) | 25 |
| Hardness (BHN) | 288 |
OHNS Hardness:
The maximum achievable hardness for OHNS steel is 230 HBW.
OHNS Heat Treatment:
- Soft Annealing: Performed at 750-780°C with furnace cooling. The target hardness after annealing is 230 HBW.
- Stress-Relief Annealing: Conducted at approx. 650°C to relieve internal stresses.
- Hardening: Heat to 780-820°C, then quench in oil, air, or salt bath at 180-220°C, achieving hardness up to 65 HRC.
OHNS Hardening:
Uniformly heat OHNS steel to 780-820°C (1436-1508°F). Preheating at 300-500°C is optional. After heating, quench in oil immediately for maximum hardness.
OHNS Tempering:
Tempering is done at 177-260°C (350-500°F), providing a Rockwell C hardness between 57 and 62 depending on the desired properties.
OHNS Physical Properties:
| Property | Value |
|---|---|
| Density | 8670 kg/m³ |
| Thermal Conductivity (W/m*K) | 20°C: 33.4 |
| 350°C: 32.1 | |
| 700°C: 31.1 |
OHNS Forging Properties:
OHNS steel can be forged between 1038°C (1900°F) and 857°C (1575°F), but forging below 816°C (1550°F) is not recommended to avoid damaging the steel.
OHNS Machinability:
OHNS steel offers 90% machinability relative to water-hardening low alloy steels. Optimal machining parameters include a spindle speed of 1500 RPM, feed rate of 0.06 mm, and a 1 mm depth of cut.
OHNS Welding:
Although weldable, care must be taken to avoid cracking during the welding process. This can be achieved by preheating and using the correct welding techniques. OHNS is typically welded with mild steel electrodes, chromium-based electrodes (E312-16), or nickel-based electrodes (E-NiCrFe-3). All three options perform well in terms of crack resistance and joint strength.
